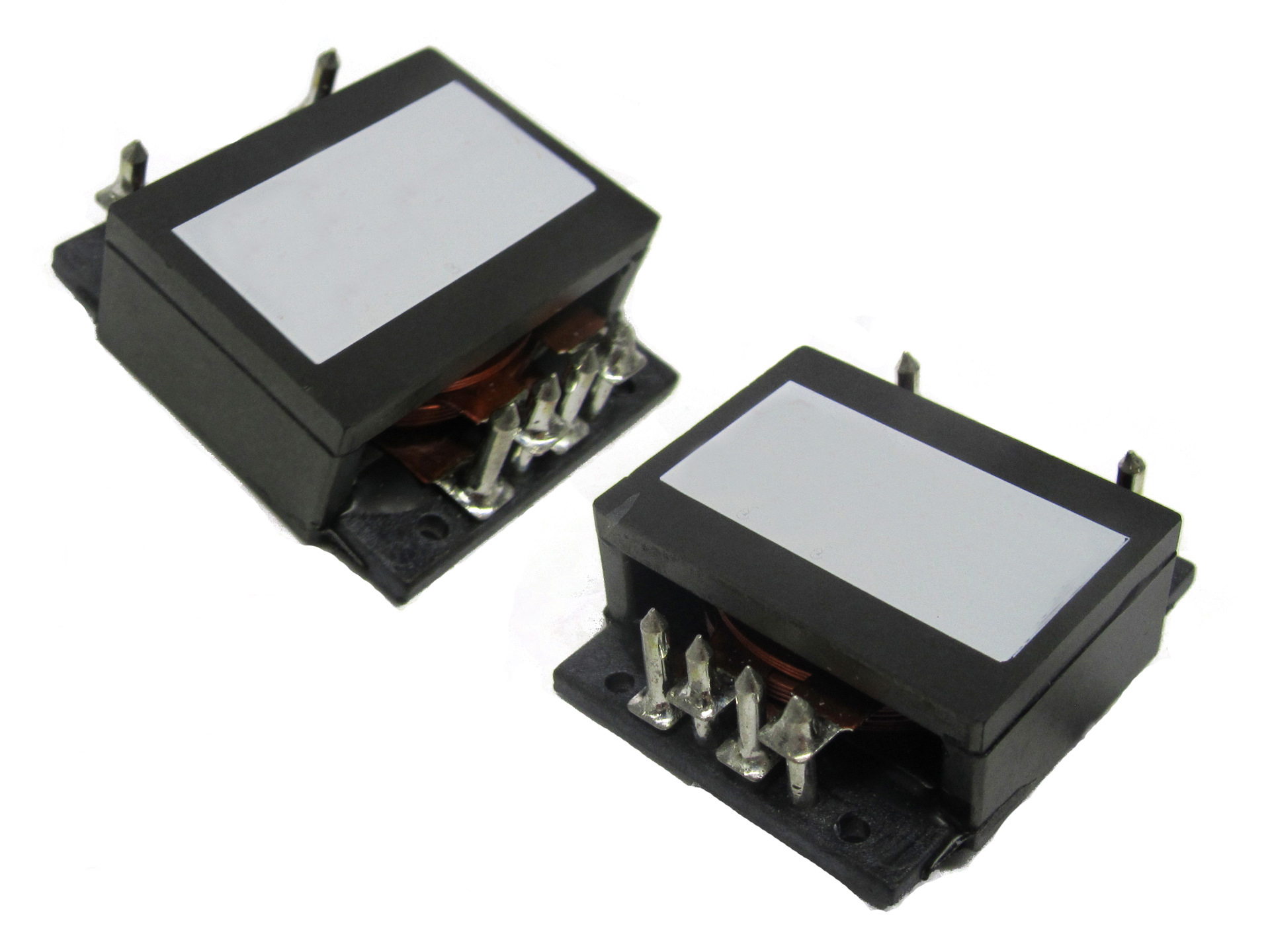

FKS-PLN Planar Transformers NEW.pdf

Characteristics

· Switching frequency: 200kHz to 700kHz optimized

· Power range: 150W to 250W

· Package size: ERI25/10/18 or ER19/4.8/15

· ER19/4.8/15 core effective area Ae (mm²): 60.0

· ERI25/10/18 core effective area Ae (mm²): 80.4

· BSAT @125°C: 370mT

· Isolation voltage: 2250VDC

· Operating temp: -40°C to 125°C

Applications

· Forward converter

· Half/full bridge

· Active clamp

Products

ER19-4.8-15	Order Code	NPRI : NSEC : NAUX	ISAT1	VT	L	W	H	Mount	Download
			(mA)	(V (AC))	(mm)	(mm)	(mm)
	FKS-750341188	86	3:3:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341188.pdf
	FKS-750341195	86	3:3:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341195.pdf
	FKS-750341202	86	3:3:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341202.pdf
	FKS-750341181	86	3:3:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341181.pdf
	FKS-750341182	117	3:4:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341182.pdf
	FKS-750341189	117	3:4:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341189.pdf
	FKS-750341196	117	3:4:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341196.pdf
	FKS-750341203	117	3:4:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341203.pdf
	FKS-750341183	153	4:4:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341183.pdf
	FKS-750341190	153	4:4:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341190.pdf
	FKS-750341197	153	4:4:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341197.pdf
	FKS-750341204	153	4:4:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341204.pdf
	FKS-750341184	194	4:5:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341184.pdf
	FKS-750341191	194	4:5:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341191.pdf
	FKS-750341198	194	4:5:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341198.pdf
	FKS-750341205	194	4:5:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341205.pdf
	FKS-750341185	240	5:5:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341185.pdf
	FKS-750341192	240	5:5:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341192.pdf
	FKS-750341199	240	5:5:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341199.pdf
	FKS-750341206	240	5:5:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341206.pdf
	FKS-750341186	290	5:6:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341186.pdf
	FKS-750341193	290	5:6:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341193.pdf
	FKS-750341200	290	5:6:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341200.pdf
	FKS-750341207	290	5:6:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341207.pdf
	FKS-750341187	345	6:6:1:1	2250	21.08	23.37	10.5	SMT	FKS-750341187.pdf
	FKS-750341194	345	6:6:2:2	2250	21.08	23.37	10.5	SMT	FKS-750341194.pdf
	FKS-750341201	345	6:6:3:3	2250	21.08	23.37	10.5	SMT	FKS-750341201.pdf
	FKS-750341208	345	6:6:4:4	2250	21.08	23.37	10.5	SMT	FKS-750341208.pdf
ERI25-10-18	Order Code	NPRI : NSEC : NAUX	ISAT1	VT	L	W	H	Mount	Download
			(mA)	(V (AC))	(mm)	(mm)	(mm)
	FKS-750341134	65	2:02:04	2250	26.67	29.3	10.5	SMT	FKS-750341134.pdf
	FKS-750341138	65	2:02:03	2250	26.67	29.3	10.5	SMT	FKS-750341138.pdf
	FKS-750341142	65	2:02:02	2250	26.67	29.3	10.5	SMT	FKS-750341142.pdf
	FKS-750341143	143	3:03:02	2250	26.67	29.3	10.5	SMT	FKS-750341143.pdf
	FKS-750341135	145	3:03:04	2250	26.67	29.3	10.5	SMT	FKS-750341135.pdf
	FKS-750341139	145	3:03:03	2250	26.67	29.3	10.5	SMT	FKS-750341139.pdf
	FKS-750341136	260	4:04:04	2250	26.67	29.3	10.5	SMT	FKS-750341136.pdf
	FKS-750341140	260	4:04:03	2250	26.67	29.3	10.5	SMT	FKS-750341140.pdf
	FKS-750341144	260	4:04:02	2250	26.67	29.3	10.5	SMT	FKS-750341144.pdf
	FKS-750341137	410	5:05:04	2250	26.67	29.3	10.5	SMT	FKS-750341137.pdf
	FKS-750341141	410	5:05:03	2250	26.67	29.3	10.5	SMT	FKS-750341141.pdf
	FKS-750341145	410	5:05:02	2250	26.67	29.3	10.5	SMT	FKS-750341145.pdf
